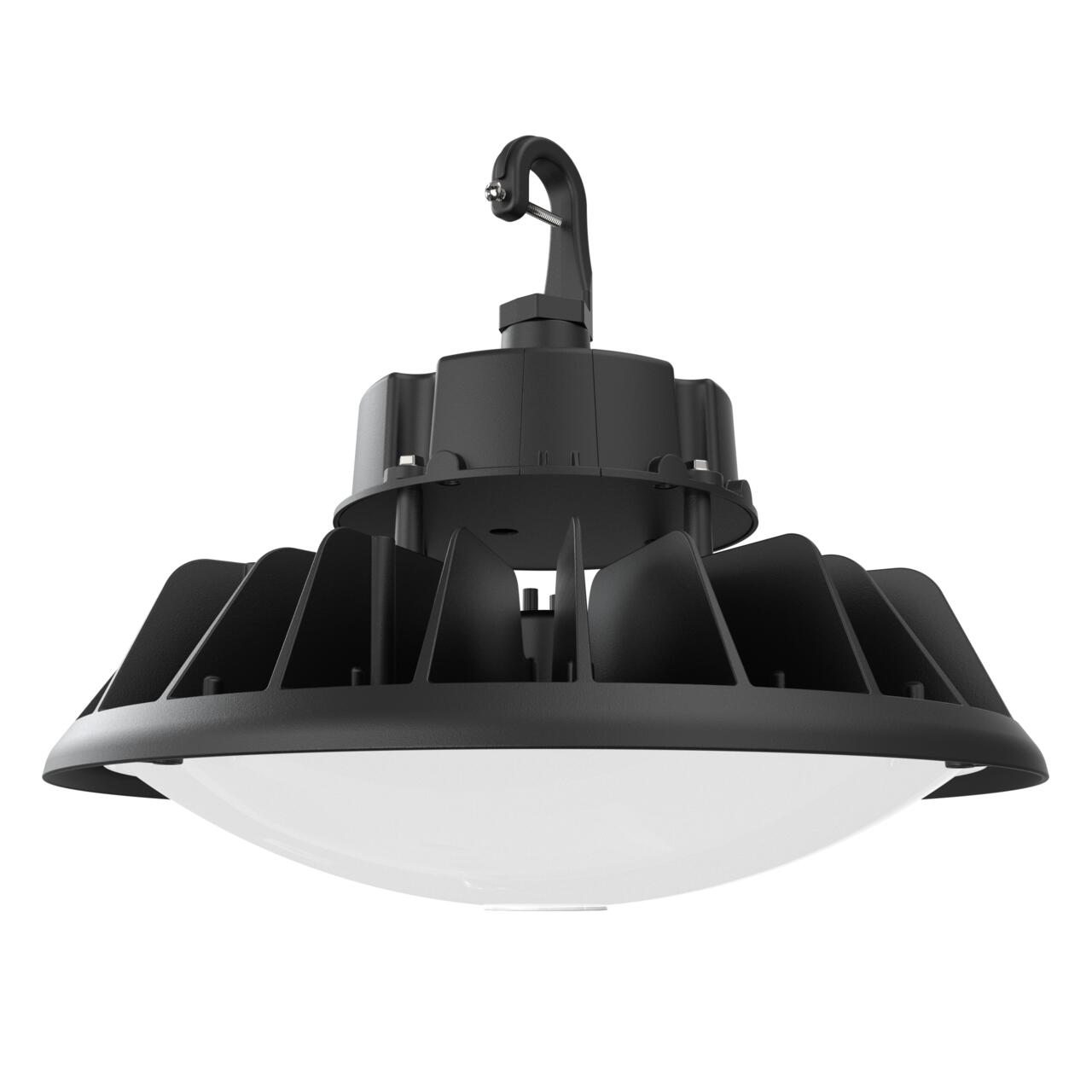

UFO highbay dome V2 240-200-150W 120-347V 50K black clear 90 deg. motion base dim 0-10V
UFO highbay dome V2 240-200-150W 120-347V 50K black clear 90 deg. motion base dim 0-10V
Out of stock
Couldn't load pickup availability
Description
Description
Technical specifications
Nomenclature
| Series | Dimensions | Lens | Body Colour | Voltage | CCT | Max Power | Options 1 | Options 2 | VER. |
|---|---|---|---|---|---|---|---|---|---|
| DU | 90 | C | B | F | 5 | 240 | M | D | V2 |
| UFO highbay dome | 90 deg. | clear | black | 120-347V | 5000K | 240-200-150W | motion base | dim 0-10V | SS Version 2 |
| Series | Dimensions | Lens | Body Colour | Voltage |
|---|---|---|---|---|
| DU | 90 | C | B | F |
| UFO highbay dome | 90 deg. | clear | black | 120-347V |
| CCT | Max Power | Options 1 | Options 2 | VER. |
|---|---|---|---|---|
| 5 | 240 | M | D | V2 |
| 5000K | 240-200-150W | motion base | dim 0-10V | SS Version 2 |
Photometric Specifications
| CCT | 5000K |
|---|---|
| Angle | 110° |
| C.R.I. | 80.0 |
| Efficiency | 151.72 |
| Lumens (DLC) | 36579.0 |
| Lumen maintenance L70 | 50,000 hrs |
| Dimmable | Yes |
| Photocell | Yes |
| Sensor | Yes |
| Flicker | Flicker-Free |
| Application tags (4) | Indoor |
Electrical Specifications
| Voltage | 120-347V |
|---|---|
| Max real power | 241.1 |
| Power factor | 97.2 |
| T.H.D | 5.9 |
| Frequency | 50/60Hz |
| Surge protection w/ ground | 6KV |
| Surge protection w/o ground | 6KV |
Certifications & Other
| Electrical | cUL |
|---|---|
| Waterproof | IP65 |
| Resistance | IK08 |
| FCC | No |
| DLC applicable | No |
| DLC ID | S-GKXP58 |
| Efficiency | DLC Premium |
Mechanical Specifications
| Housing material | Die casting Aluminium |
|---|---|
| Housing finish | Black |
| Lens material | Polycarbonate |
| Installation | Suspended |
| Cable length | 180.0 |
| Operating temperature | -40°C ~ 45°C |
| Storage temperature | -40°C ~ 70°C |
| LED type | SMD 2835 |
| LED qty | 336 |

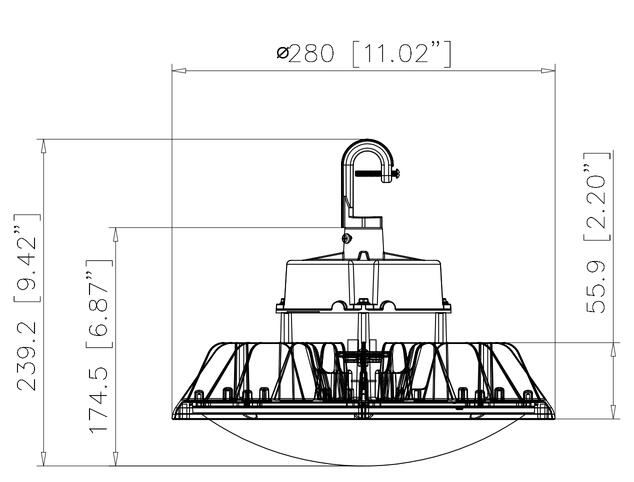

Dimensions
Packaging
| Unit box dimension | Master box dimension | Master qty | Weight | Pallet qty |
|---|---|---|---|---|
| 0.0 cm X 0.0 cm X 0.0 cm0.0" X 0.0" X 0.0" | 0.0 cm X 0.0 cm X 0.0 cm0.0" X 0.0" X 0.0" | 0 | 0.0 kg0.0 lbs | N/A |
