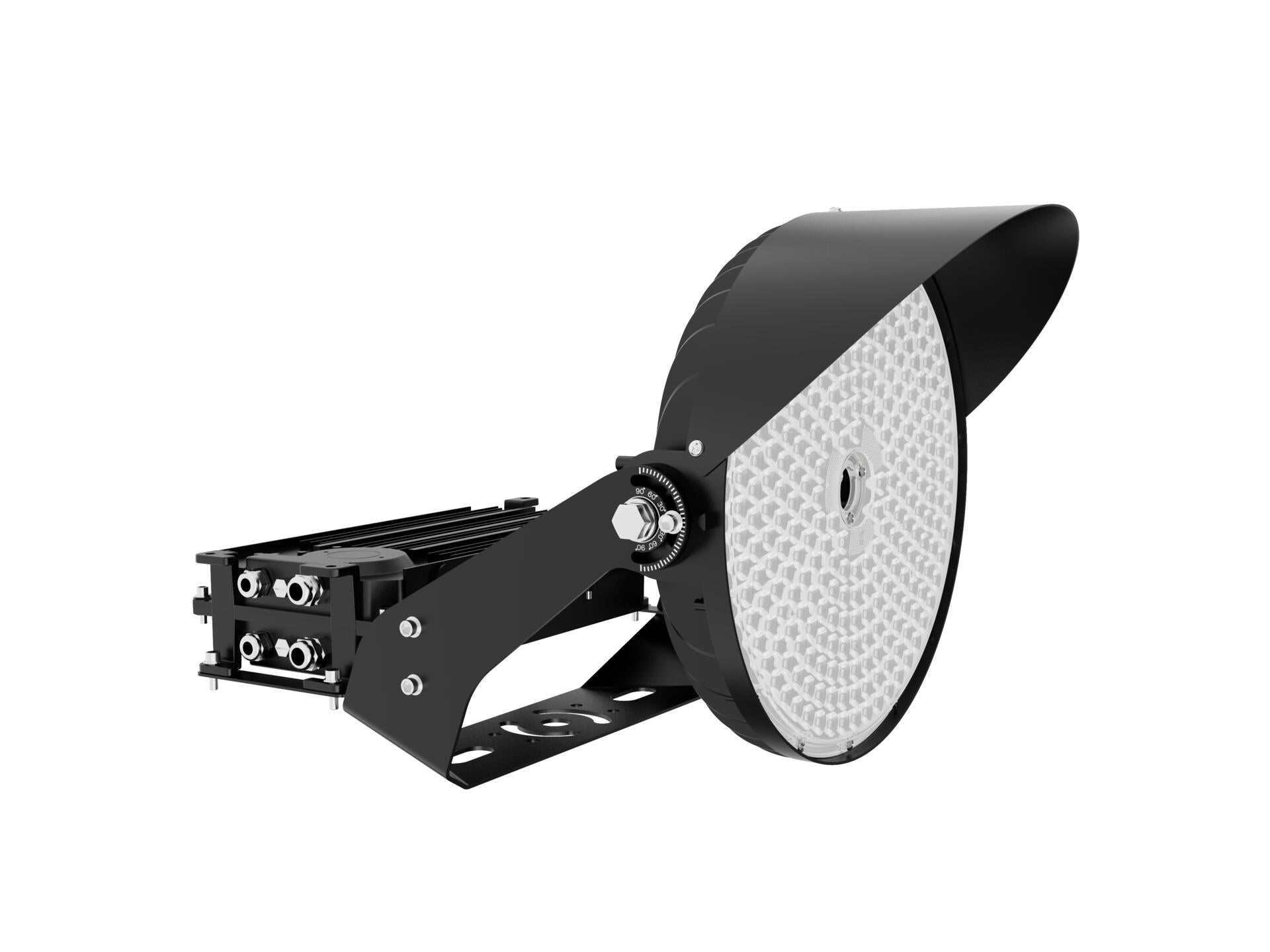

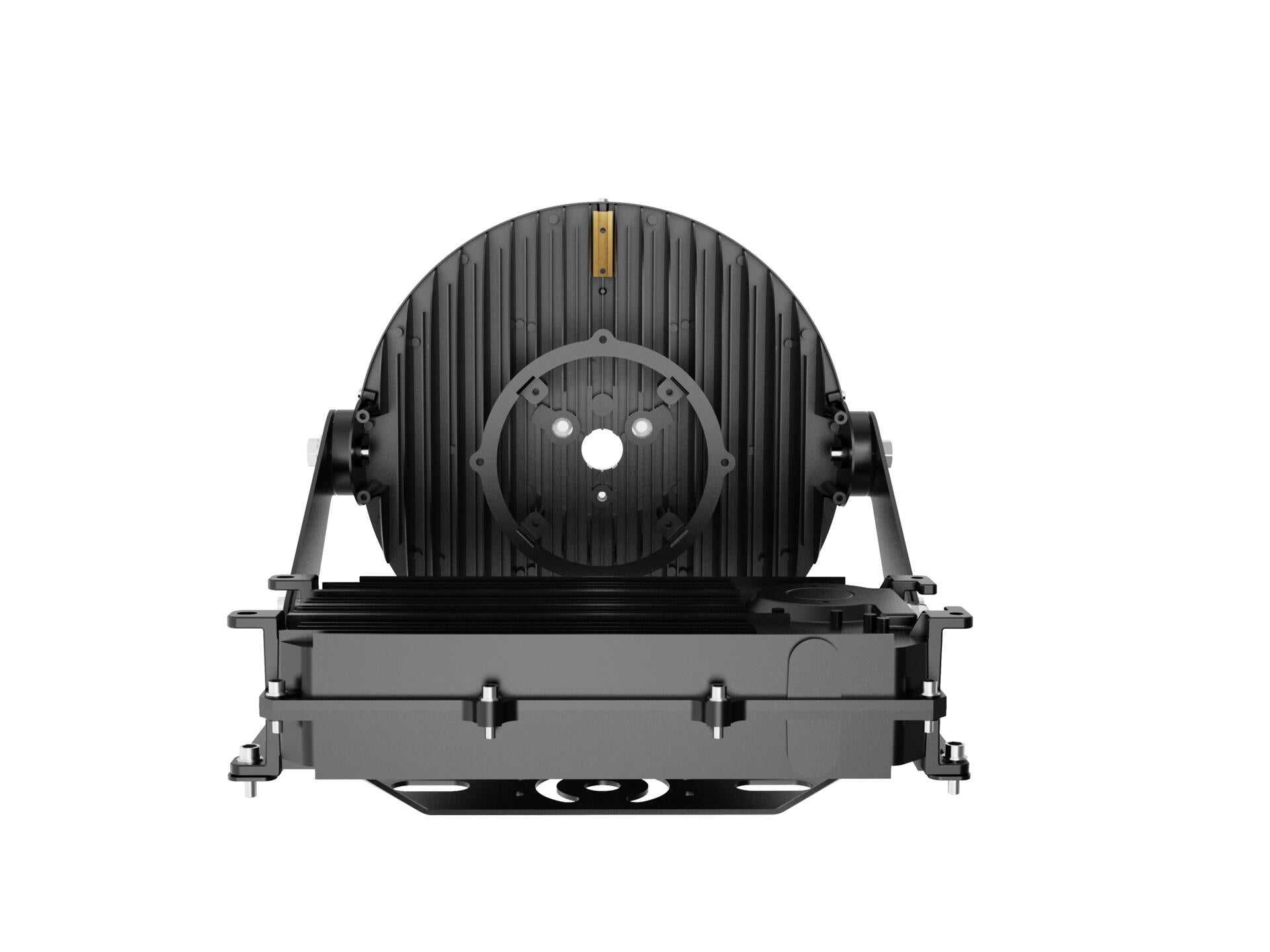

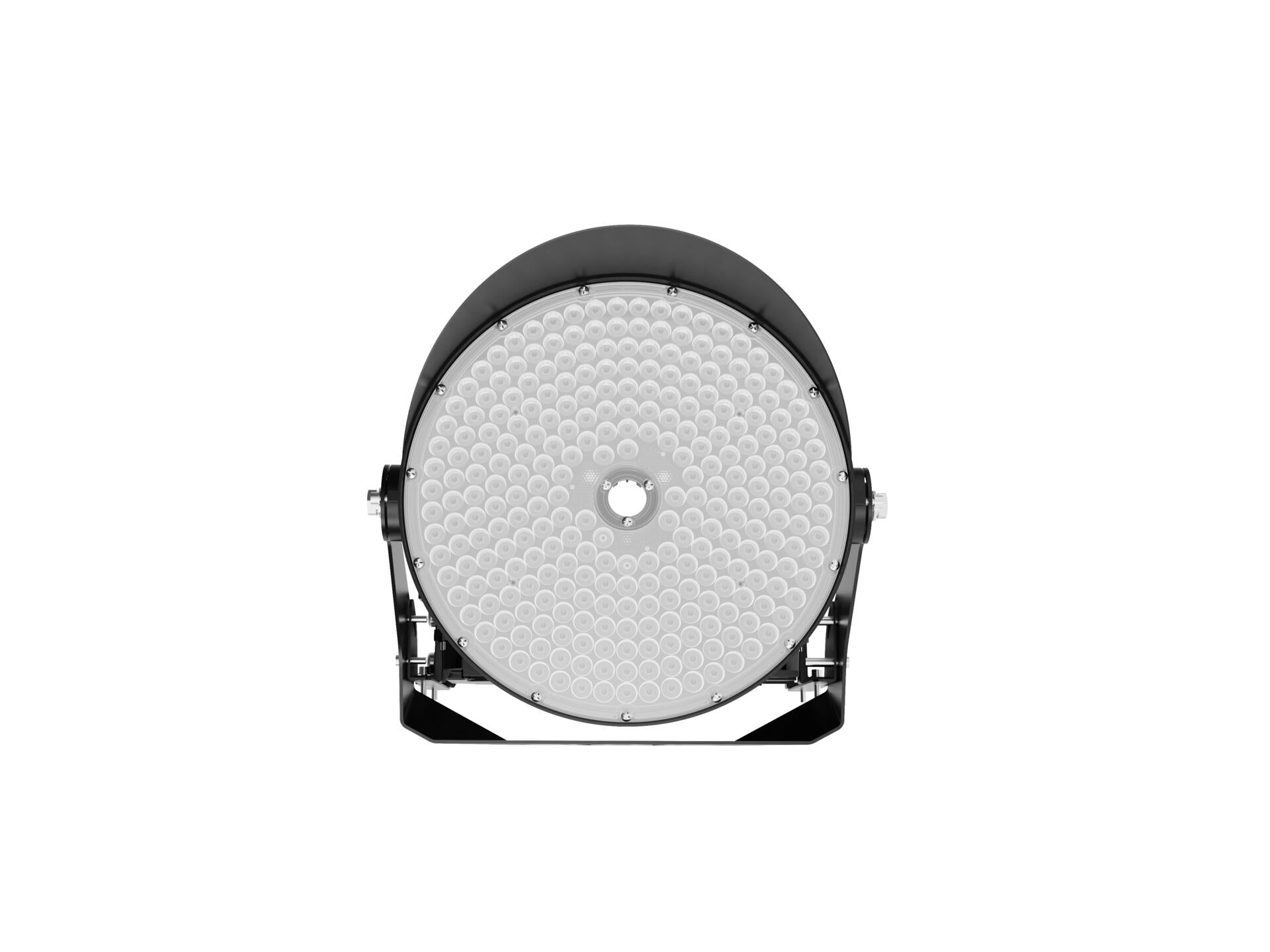

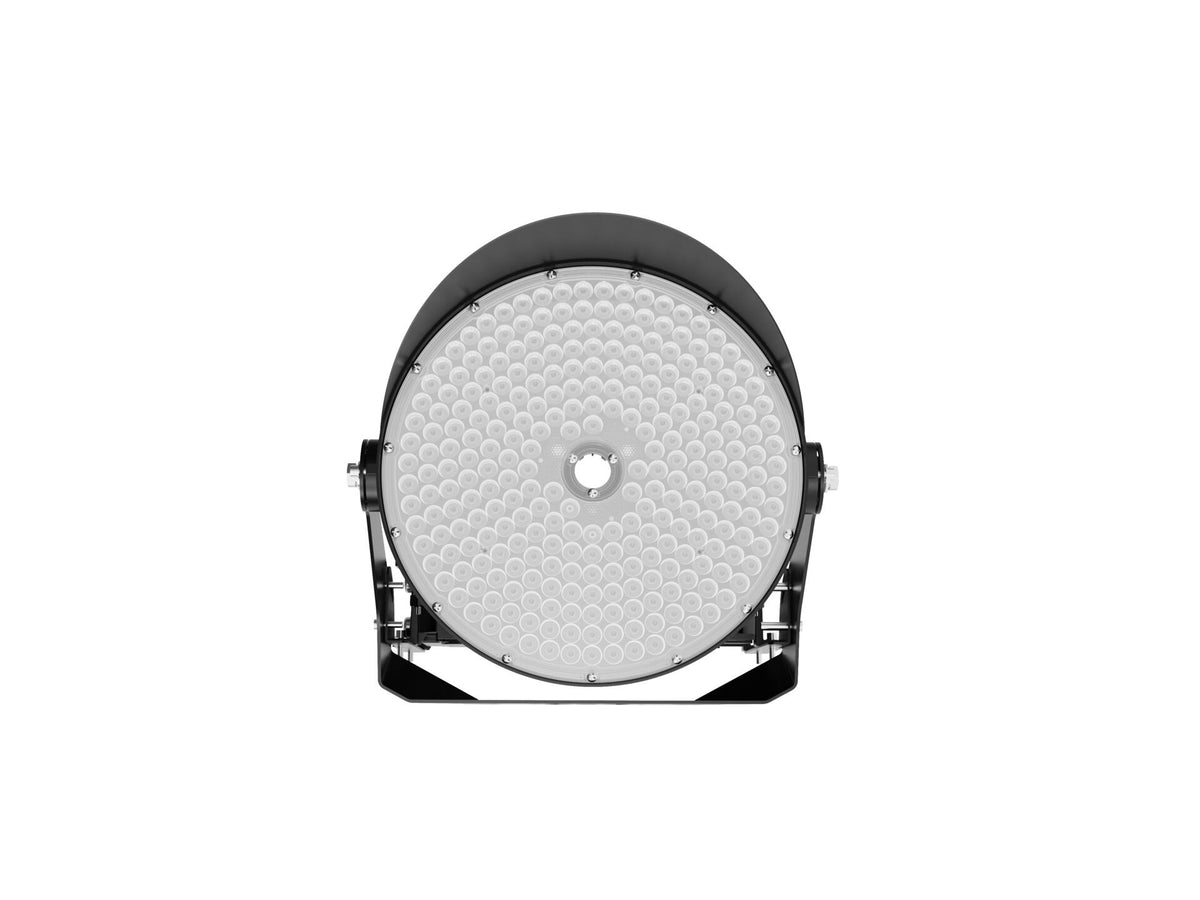

Sports light 600-500-400-300W 120-347V 50K black clear 40 deg. dim 0-10V V2
Sports light 600-500-400-300W 120-347V 50K black clear 40 deg. dim 0-10V V2
Available in stock (54)
Couldn't load pickup availability
Description
Description
Technical specifications
Nomenclature
| Series | Dimensions | Lens | Body Colour | Voltage | CCT | Max Power | Options 1 | Options 2 | VER. |
|---|---|---|---|---|---|---|---|---|---|
| SA | 40 | C | B | F | 5 | 600 | 0 | D | V2 |
| Sports light | 40 deg. | clear | black | 120-347V | 5000K | 600-500-400-300W | N/A | dim 0-10V | SS V2 |
| Series | Dimensions | Lens | Body Colour | Voltage |
|---|---|---|---|---|
| SA | 40 | C | B | F |
| Sports light | 40 deg. | clear | black | 120-347V |
| CCT | Max Power | Options 1 | Options 2 | VER. |
|---|---|---|---|---|
| 5 | 600 | 0 | D | V2 |
| 5000K | 600-500-400-300W | N/A | dim 0-10V | SS V2 |
Photometric Specifications
| CCT | 5000K |
|---|---|
| Angle | 40.0 |
| C.R.I. | 77.0 |
| Efficiency | 151.6 |
| Lumens (DLC) | 90461.0 |
| Lumen maintenance L70 | 50,000 hrs |
| Dimmable | Yes |
| Photocell | Yes |
| Sensor | Yes |
| Flicker | Flicker-Free |
| Application tags (4) | Outdoor |
Electrical Specifications
| Voltage | 120-347V |
|---|---|
| Max Power | 596.7 |
| Max real power | 596.7 |
| Power factor | 93.0 |
| T.H.D | 14.3 |
| Frequency | 50/60Hz |
| Surge protection w/ ground | 10KV |
| Surge protection w/o ground | 10KV |
Certifications & Other
| Electrical | cUL |
|---|---|
| Waterproof | IP66 |
| Resistance | IK06 |
| DLC applicable | No |
| DLC ID | S-7L322G |
| Efficiency | DLC Premium |
Mechanical Specifications
| Housing material | Die casting Aluminium |
|---|---|
| Housing finish | Black |
| Lens material | Polycarbonate |
| Installation | Wall Mount |
| Cable length | 180.0 |
| Operating temperature | -40°C ~ 45°C |
| Storage temperature | -40°C ~ 70°C |
| LED type | SMD 2835 |
| LED qty | 810 |

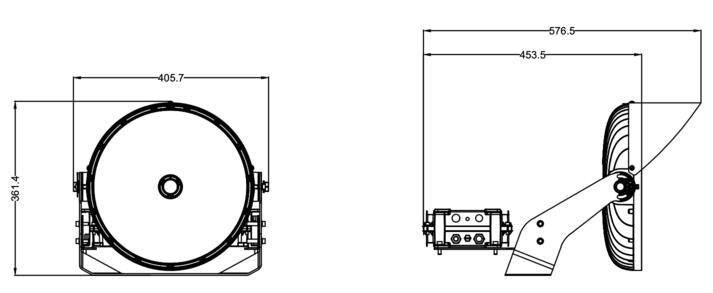

Dimensions
Packaging
| Unit box dimension | Master box dimension | Master qty | Weight | Pallet qty |
|---|---|---|---|---|
| 46.3 cm X 43.6 cm X 34.9 cm18.23" X 17.17" X 13.74" | 0.0 cm X 0.0 cm X 0.0 cm0.0" X 0.0" X 0.0" | 0 | 13.6 kg29.98 lbs | 12 |
