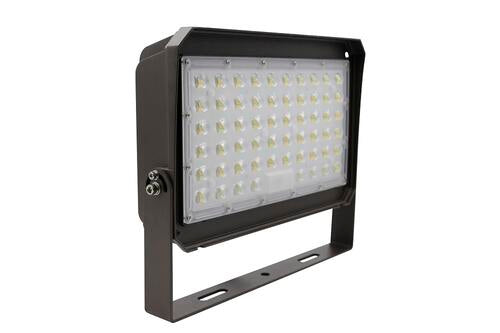

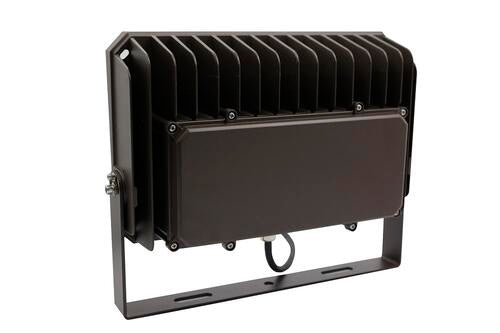

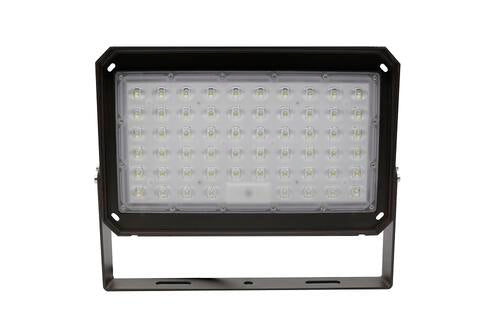

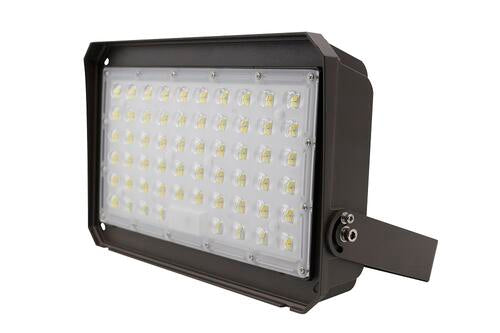

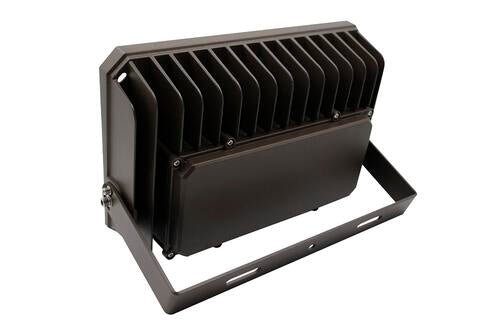

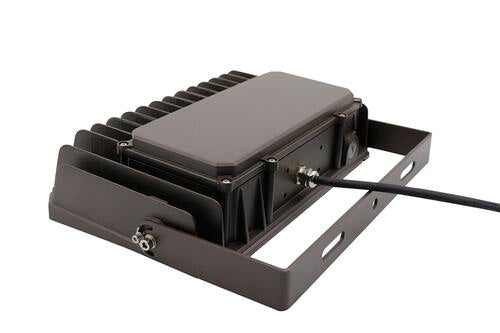

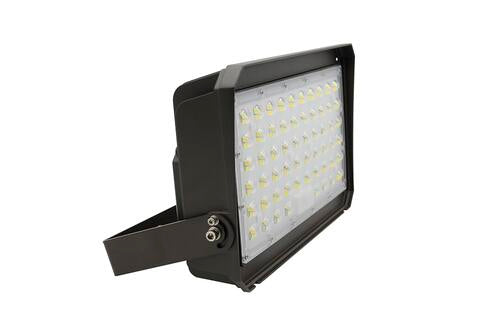

Flood light 200W 120-347V 57K bronze clear 120 deg. int. photo.
Flood light 200W 120-347V 57K bronze clear 120 deg. int. photo.
Available in stock (206)
Couldn't load pickup availability
Description
Description
Technical specifications
Nomenclature
| Series | Dimensions | Lens | Body Colour | Voltage | CCT | Max Power | Options 1 | Options 2 | VER. |
|---|---|---|---|---|---|---|---|---|---|
| FL | 00 | C | R | F | 6 | 200 | 0 | P | ML |
| Flood light | 120 deg. | clear | bronze | 120-347V | 5700K | 200W | N/A | int. photo. | ML |
| Series | Dimensions | Lens | Body Colour | Voltage |
|---|---|---|---|---|
| FL | 00 | C | R | F |
| Flood light | 120 deg. | clear | bronze | 120-347V |
| CCT | Max Power | Options 1 | Options 2 | VER. |
|---|---|---|---|---|
| 6 | 200 | 0 | P | ML |
| 5700K | 200W | N/A | int. photo. | ML |
Photometric Specifications
| CCT | 5700K |
|---|---|
| Angle | 140° |
| C.R.I. | 72.0 |
| Efficiency | 147.47 |
| Lumens (DLC) | 29347.0 |
| Lumen maintenance L70 | 75,000 hrs |
| Dimmable | Yes |
| Photocell | Yes |
| Sensor | Yes |
| Flicker | Not Flicker-Free |
| Application tags | Outdoor |
| Application tags (2) | Commercial |
| Application tags (4) | Outdoor |
| Application tags (5) | Commercial |
Electrical Specifications
| Voltage | 100-347V |
|---|---|
| Max Power | 199.8 |
| Max real power | 199.8 |
| Power factor | 92.1 |
| T.H.D | 16.6 |
| Frequency | 50/60Hz |
| Surge protection w/ ground | 2.4KV |
| Surge protection w/o ground | 4KV |
Certifications & Other
| Electrical | cETL |
|---|---|
| Waterproof | IP65 |
| Resistance | IK08 |
| DLC applicable | No |
| DLC ID | P1HDWN8C |
| Efficiency | DLC Premium |
Mechanical Specifications
| Housing material | Die casting Aluminium |
|---|---|
| Housing finish | Bronze |
| Lens material | Polycarbonate |
| Installation | Wall Mount |
| Cable length | 100.0 |
| Operating temperature | -40°C ~ 55°C |
| Storage temperature | -40°C ~ 70°C |
| LED type | Lumileds SMD3030 |
| LED qty | 220 |

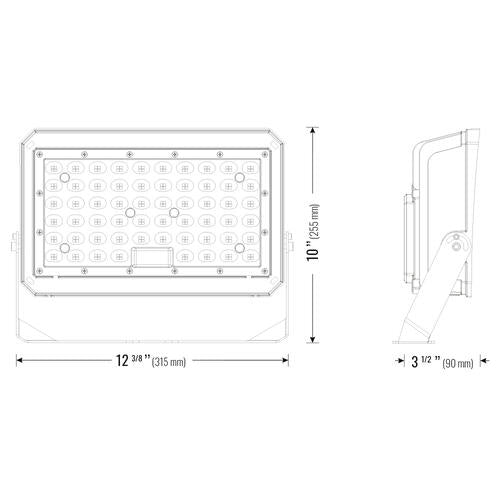

Dimensions
Packaging
| Unit box dimension | Master box dimension | Master qty | Weight | Pallet qty |
|---|---|---|---|---|
| 36.0 cm X 33.0 cm X 15.0 cm14.17" X 12.99" X 5.91" | 63.0 cm X 38.0 cm X 35.0 cm24.8" X 14.96" X 13.78" | 4 | 4.0 kg8.82 lbs | 20 |
