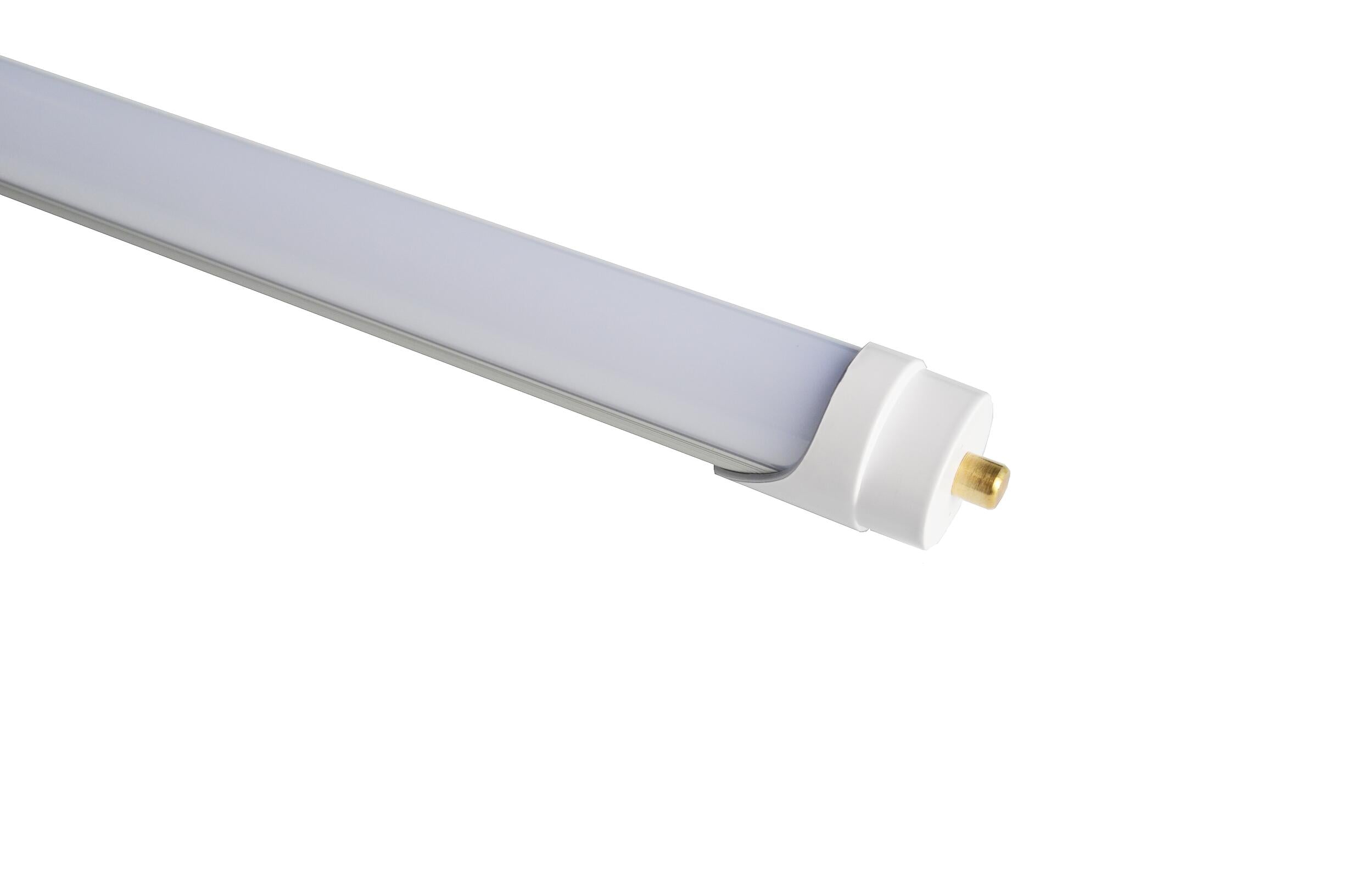

[10pk] (Vente finale) T8 8ft 40W 120-347V 50K 1-pin both ends wiring frost ballast bypass
[10pk] (Vente finale) T8 8ft 40W 120-347V 50K 1-pin both ends wiring frost ballast bypass
Hurry up, only 1 item left in stock.
This product is oversize. Shipping cost and MOQ may be impacted. Final shipping price calculated at checkout.
Couldn't load pickup availability
Description
Description
Technical specifications
Nomenclature
| Series | Dimensions | Lens | Body Colour | Voltage | CCT | Max Power | Options 1 | Options 2 | VER. |
|---|---|---|---|---|---|---|---|---|---|
| T8 | 8 | 2 | FA8 | F | 5 | 060 | F | B | Z |
| T8 | 8ft | both ends wiring | 1-pin | 120-347V | 5000K | 60W | frost | ballast bypass | ZS |
| Series | Dimensions | Lens | Body Colour | Voltage |
|---|---|---|---|---|
| T8 | 8 | 2 | FA8 | F |
| T8 | 8ft | both ends wiring | 1-pin | 120-347V |
| CCT | Max Power | Options 1 | Options 2 | VER. |
|---|---|---|---|---|
| 5 | 060 | F | B | Z |
| 5000K | 60W | frost | ballast bypass | ZS |
Photometric Specifications
| CCT | 5000K |
|---|---|
| Angle | 120° |
| C.R.I. | 83.0 |
| Efficiency | 150.0 |
| Lumens (DLC) | 6000.0 |
| Lumen maintenance L70 | 50,000 hrs |
| Dimmable | Yes |
| Photocell | Yes |
| Sensor | Yes |
| Flicker | Not Flicker-Free |
| Application tags (4) | Indoor |
Electrical Specifications
| Voltage | 120-347V |
|---|---|
| Max Power | 40.0 |
| Max real power | 40.0 |
| Power factor | 90.0 |
| T.H.D | 20.0 |
| Frequency | 50/60Hz |
| Surge protection w/ ground | 1.2KV |
| Surge protection w/o ground | 2KV |
Certifications & Other
| Electrical | cETL |
|---|---|
| Waterproof | N/A |
| Resistance | N/A |
| FCC | FCC |
| DLC applicable | No |
| DLC ID | P1S2LRWF |
| Efficiency | DLC Standard |
Mechanical Specifications
| Housing material | Aluminium |
|---|---|
| Housing finish | White |
| Lens material | Polycarbonate |
| Installation | Retro-Fit |
| Cable length | N/A |
| EPA tilt | N/A |
| Operating temperature | -40°C ~ 40°C |
| Storage temperature | -40°C ~ 70°C |
| LED type | SMD2835 |
| LED qty | 240 |
Dimensions
![Dimensions diagram: [10pk] (Vente finale) T8 8ft 40W 120-347V 50K 1-pin both ends wiring frost ballast bypass](https://ik.imagekit.io/speclite/products3/T882FA8F5040FBZ/Dimensions.jpg?tr=w-1000,h-1000,c-at_max)
Packaging
| Unit box dimension | Master box dimension | Master qty | Weight | Pallet qty |
|---|---|---|---|---|
| 242.0 cm X 21.0 cm X 10.0 cm95.28" X 8.27" X 3.94" | 0.0 cm X 0.0 cm X 0.0 cm0.0" X 0.0" X 0.0" | 0 | 6.0 kg13.23 lbs | 80 |
