Emergency light running man ABS white 120-347V 180 mins NiCad 0.5W
Emergency light running man ABS white 120-347V 180 mins NiCad 0.5W
Available in stock (81)
Couldn't load pickup availability
Description
Description
Technical specifications
Nomenclature
| Series | Dimensions | Lens | Body Colour | Voltage | CCT | Max Power | Options 1 | Options 2 | VER. |
|---|---|---|---|---|---|---|---|---|---|
| EM | RM | A | W | F | 18 | 05 | N | 0 | BY |
| Emergency light | running man | ABS | white | 120-347V | 180 mins | 0.5W | NiCad | N/A | BY |
| Series | Dimensions | Lens | Body Colour | Voltage |
|---|---|---|---|---|
| EM | RM | A | W | F |
| Emergency light | running man | ABS | white | 120-347V |
| CCT | Max Power | Options 1 | Options 2 | VER. |
|---|---|---|---|---|
| 18 | 05 | N | 0 | BY |
| 180 mins | 0.5W | NiCad | N/A | BY |

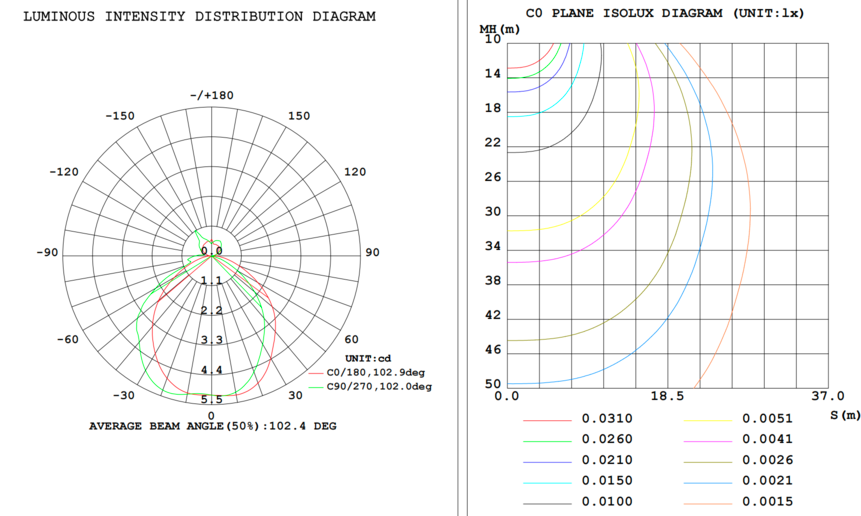

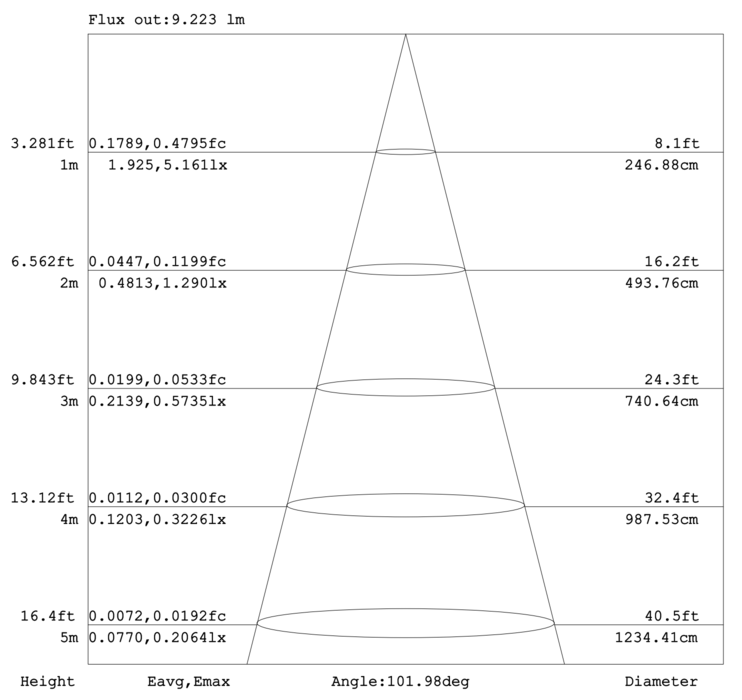

Photometric Specifications
| CCT | 6500K |
|---|---|
| Angle | 102.0 |
| C.R.I. | 75.0 |
| Efficiency | 5.0 |
| Lumens (DLC) | 20lm |
| Lumen maintenance L70 | N/A |
| Dimmable | Yes |
| Photocell | Yes |
| Sensor | Yes |
| Application tags | Indoor |
| Application tags (2) | Commercial |
| Application tags (4) | Indoor |
| Application tags (5) | Commercial |
Electrical Specifications
| Voltage | 120-347V |
|---|---|
| Max Power | 4.5 |
| Max real power | 4.5 |
| Power factor | 0.4 |
| T.H.D | 14.8 |
| Frequency | 50/60Hz |
| Surge protection w/ ground | 0.5KV |
| Surge protection w/o ground | 1KV |
Certifications & Other
| Electrical | cUL |
|---|---|
| Waterproof | IP40 |
| Resistance | N/A |
| FCC | true |
| DLC applicable | No |
| Efficiency | N/A |
Mechanical Specifications
| Housing material | ABS |
|---|---|
| Housing finish | White |
| Lens material | Polycarbonate |
| Installation | Surface Mount |
| Cable length | N/A |
| LED type | 4014 |
| LED qty | 16pcs |

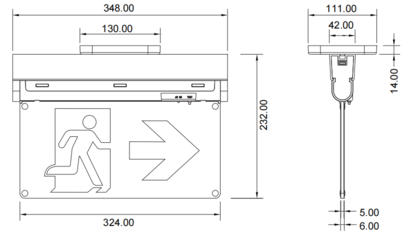

Dimensions
Packaging
| Unit box dimension | Master box dimension | Master qty | Weight | Pallet qty |
|---|---|---|---|---|
| 37.0 cm X 25.0 cm X 5.0 cm14.57" X 9.84" X 1.97" | 51.0 cm X 47.0 cm X 39.0 cm20.08" X 18.5" X 15.35" | 20 | 1.0 kg2.2 lbs | 18 |
