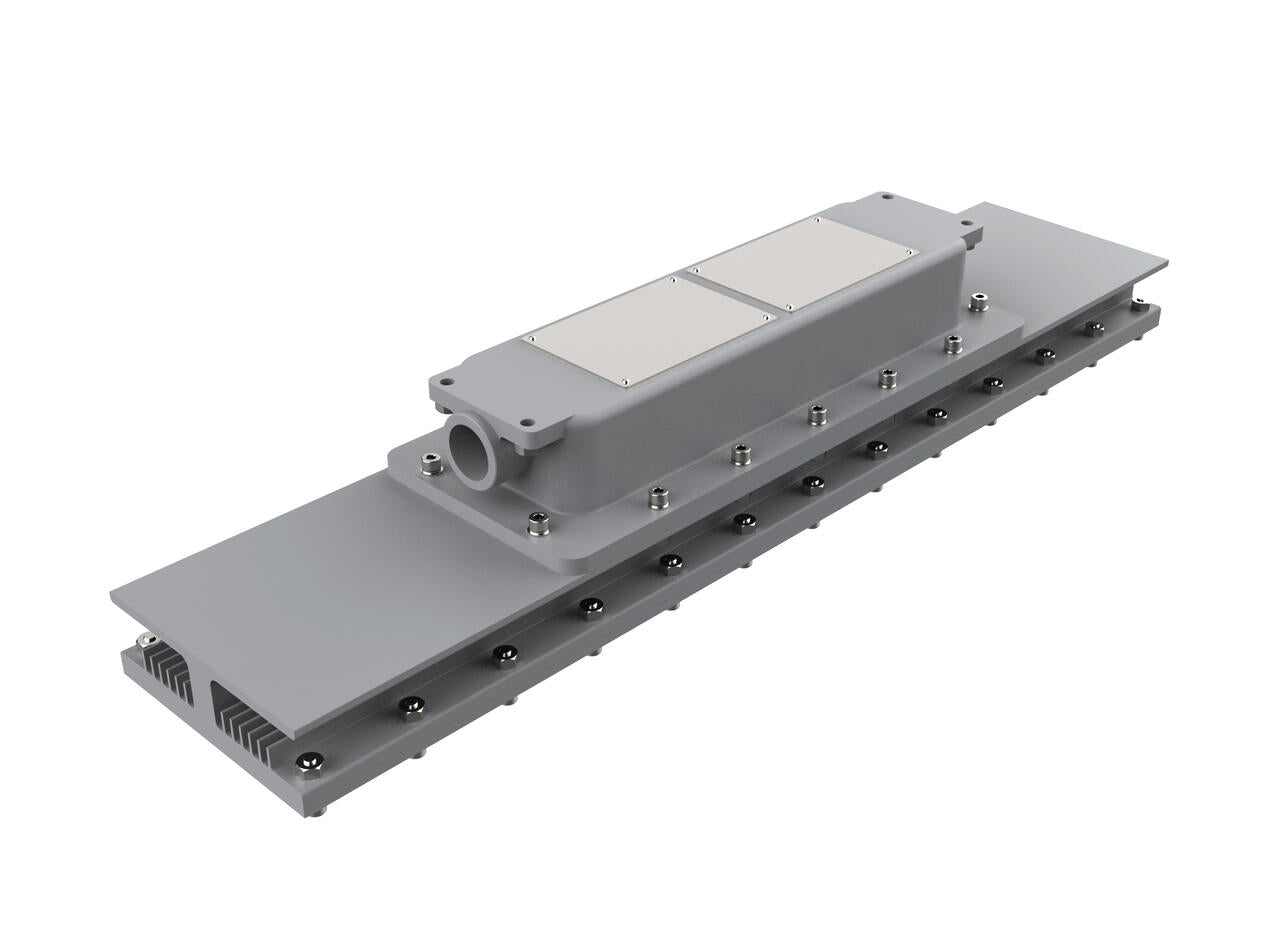

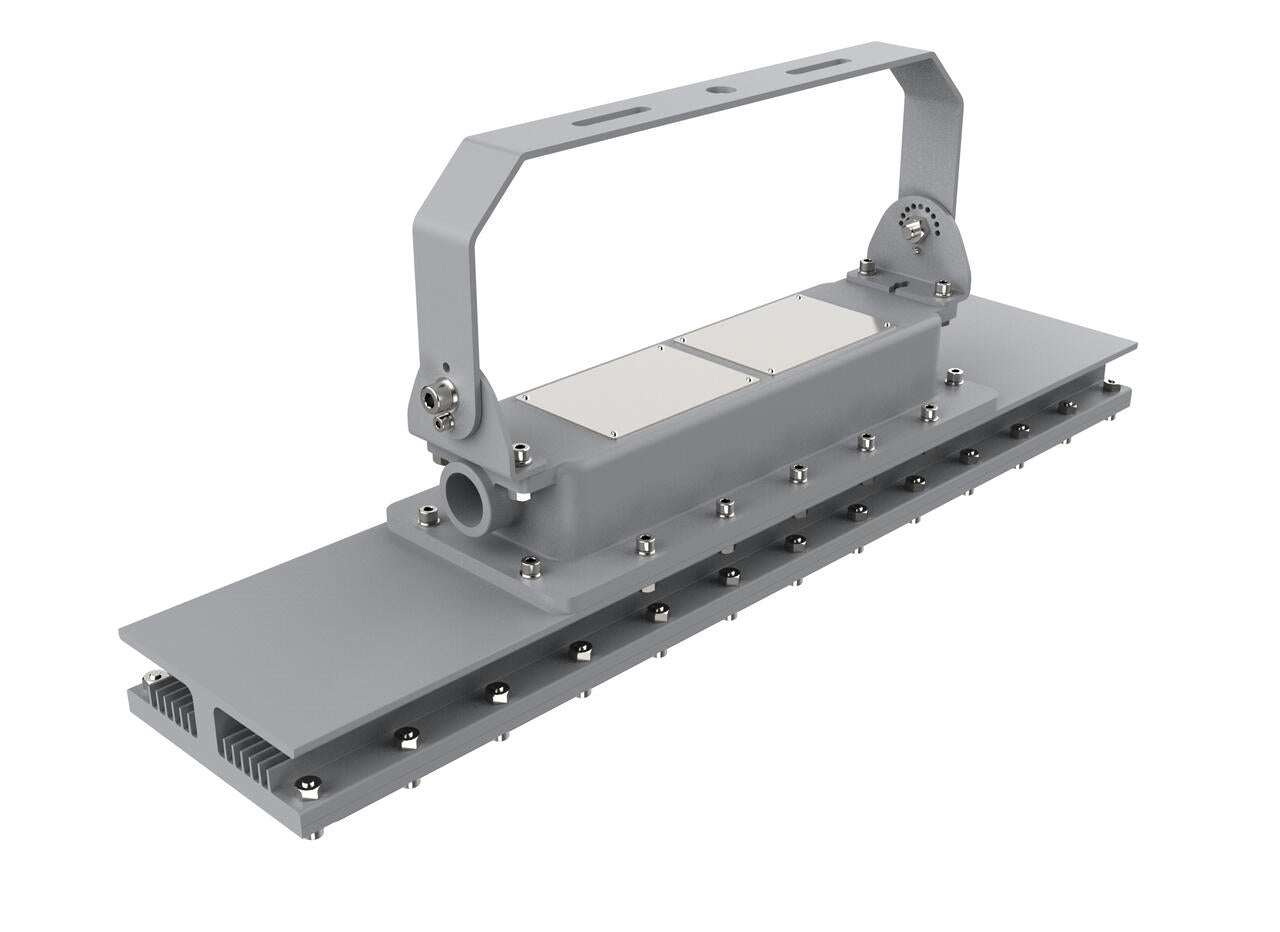

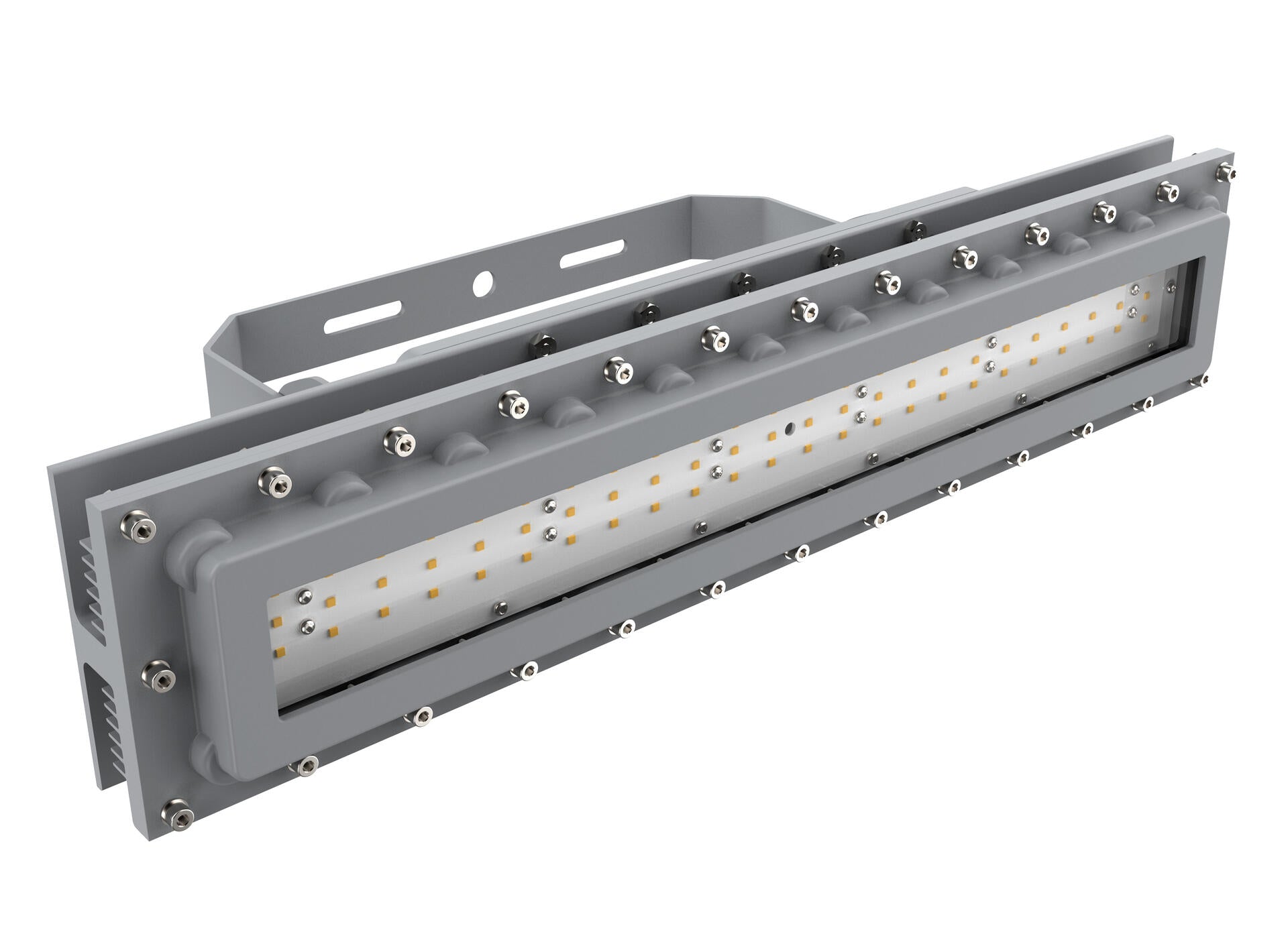

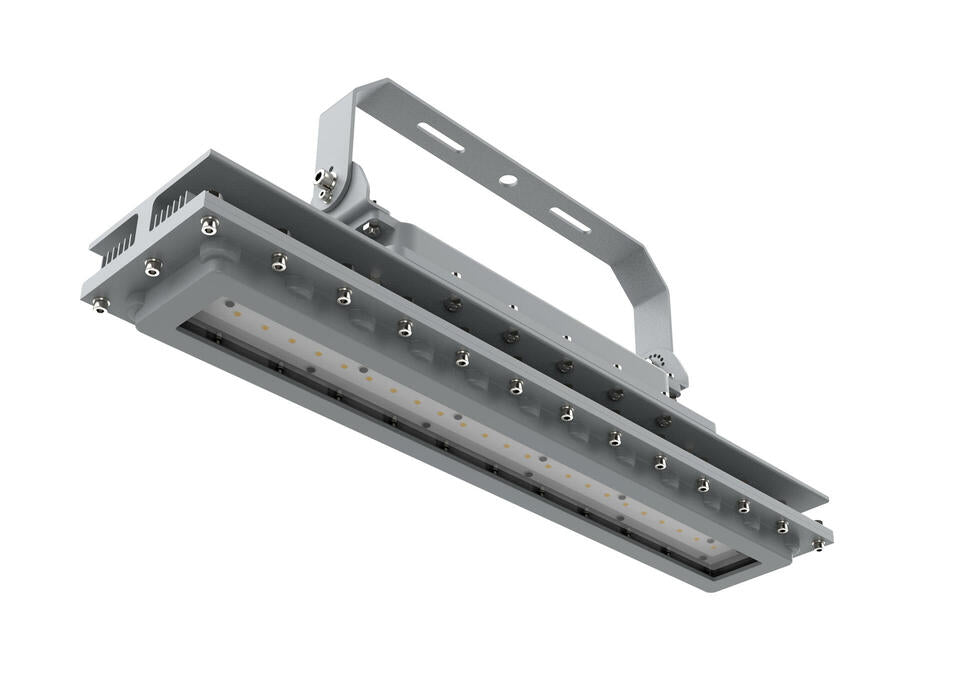

Explosion Proof 2FT Linear Shape 60W 120-277V 50K Gray Clear C1D2 IP66
Explosion Proof 2FT Linear Shape 60W 120-277V 50K Gray Clear C1D2 IP66
Hurry up, only 1 item left in stock.
Couldn't load pickup availability
Description
Description
Technical specifications
Nomenclature
| Series | Dimensions | Lens | Body Colour | Voltage | CCT | Max Power | Options 1 | Options 2 | VER. |
|---|---|---|---|---|---|---|---|---|---|
| EX | L2 | C | G | D | 5 | 060 | 2 | 0 | CS |
| Explosion Proof | 2FT Linear Shape | Clear | Gray | 120-277V | 5000K | 60W | C1D2 | IP66 | CESP |
| Series | Dimensions | Lens | Body Colour | Voltage |
|---|---|---|---|---|
| EX | L2 | C | G | D |
| Explosion Proof | 2FT Linear Shape | Clear | Gray | 120-277V |
| CCT | Max Power | Options 1 | Options 2 | VER. |
|---|---|---|---|---|
| 5 | 060 | 2 | 0 | CS |
| 5000K | 60W | C1D2 | IP66 | CESP |
Photometric Specifications
| CCT | 5000K |
|---|---|
| Angle | 110° |
| C.R.I. | 72.0 |
| Efficiency | 144.41 |
| Lumens (DLC) | 8679.0 |
| Lumen maintenance L70 | 50,000 hrs |
| Dimmable | Yes |
| Photocell | Yes |
| Sensor | Yes |
| Flicker | Flicker-Free |
| Application tags (4) | IndoorOutdoor |
Electrical Specifications
| Voltage | 100-277V |
|---|---|
| Max Power | 60.1 |
| Max real power | 60.1 |
| Power factor | 97.0 |
| T.H.D | 13.4 |
| Frequency | 50/60Hz |
| Surge protection w/ ground | 3.75KV |
| Surge protection w/o ground | 3.75KV |
Certifications & Other
| Electrical | cUL |
|---|---|
| Waterproof | IP66 |
| Resistance | IK10 |
| FCC | false |
| DLC applicable | No |
| DLC ID | S-XQVSF3 |
| Efficiency | DLC Premium |
Mechanical Specifications
| Housing material | Aluminium, Powder Coated |
|---|---|
| Housing finish | Grey |
| Lens material | Glass |
| Installation | Surface Mount |
| Cable length | 70.0 |
| Operating temperature | -40°C ~ 50°C |
| Storage temperature | -40°C ~ 70°C |
| LED type | SMD3030 |
| LED qty | 162 |

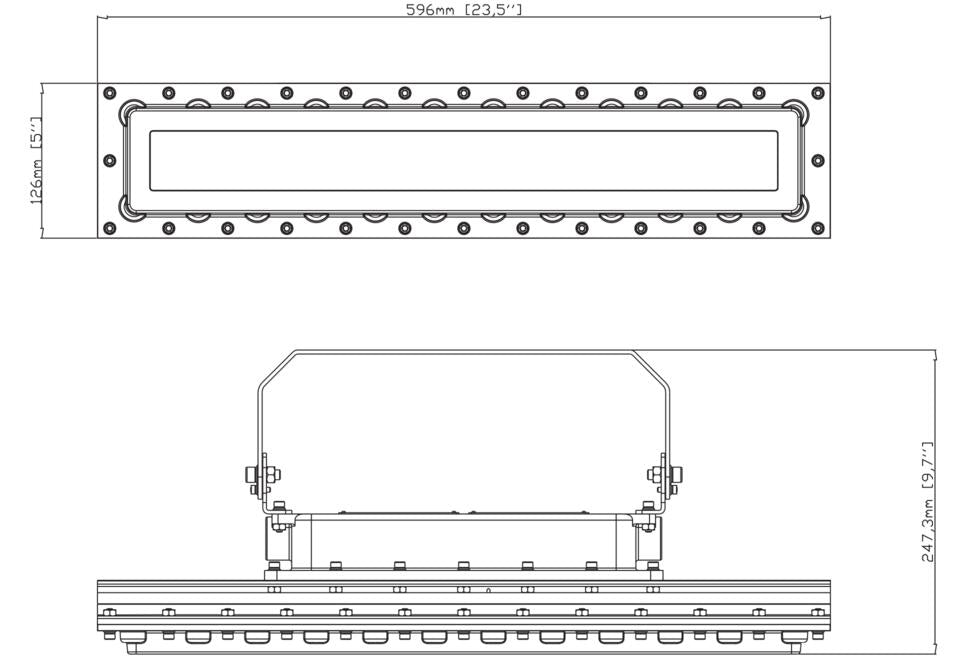

Dimensions
Packaging
| Unit box dimension | Master box dimension | Master qty | Weight | Pallet qty |
|---|---|---|---|---|
| 67.0 cm X 22.0 cm X 22.5 cm26.38" X 8.66" X 8.86" | 0.0 cm X 0.0 cm X 0.0 cm0.0" X 0.0" X 0.0" | 0 | 9.0 kg19.84 lbs | 56 |
