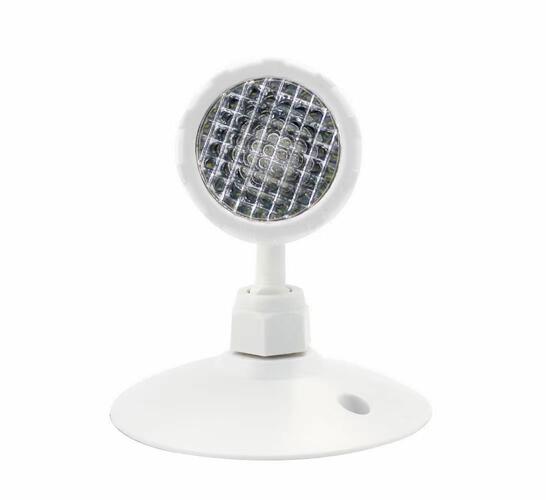

Emergency light remote heads Singel 5W 5-24VDC
Emergency light remote heads Singel 5W 5-24VDC
Out of stock
Couldn't load pickup availability
Description
Description
Technical specifications
Nomenclature
| Series |
|---|
| ZZ |
| Accessories |
| Series |
|---|
| ZZ |
| Accessories |
Photometric Specifications
| CCT | 6500K |
|---|---|
| Angle | 95° |
| C.R.I. | 80.0 |
| Efficiency | 70.0 |
| Lumens (DLC) | 350.0 |
| Lumen maintenance L70 | N/A |
| Dimmable | Yes |
| Photocell | Yes |
| Sensor | Yes |
| Flicker | Not Flicker-Free |
| Application tags (4) | Indoor |
Electrical Specifications
| Voltage | 5-24V |
|---|---|
| Max Power | 5.0 |
| Max real power | 5.0 |
| Power factor | 90.0 |
| T.H.D | N/A |
| Frequency | N/A |
| Surge protection w/ ground | N/A |
| Surge protection w/o ground | N/A |
Certifications & Other
| Electrical | cUL |
|---|---|
| Waterproof | IP20 |
| Resistance | N/A |
| FCC | false |
| DLC applicable | No |
| Efficiency | N/A |
Mechanical Specifications
| Housing material | ABS |
|---|---|
| Housing finish | White |
| Lens material | Polycarbonate |
| Installation | Surface Mount |
| Cable length | N/A |
| Operating temperature | -20°C ~ 45°C |
| Storage temperature | -40°C ~ 70°C |
| LED type | SMD 3030 |
| LED qty | 8 |

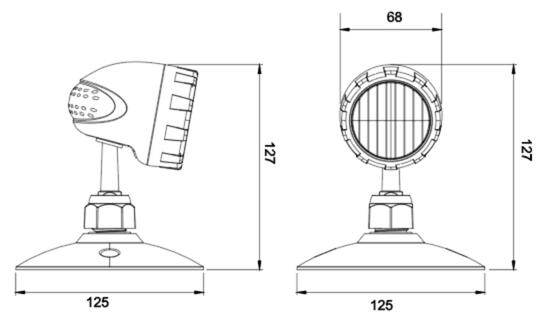

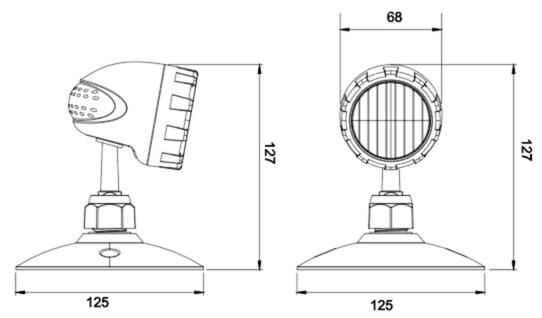

Dimensions
Packaging
| Unit box dimension | Master box dimension | Master qty | Weight | Pallet qty |
|---|---|---|---|---|
| 14.0 cm X 13.0 cm X 8.3 cm5.51" X 5.12" X 3.27" | 44.2 cm X 40.8 cm X 35.2 cm17.4" X 16.06" X 13.86" | 36 | 0.2 kg0.44 lbs | 24 |
