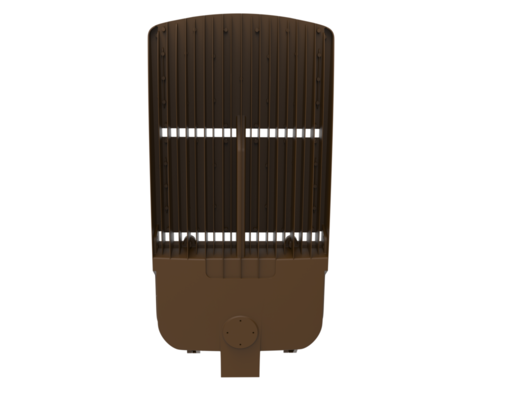

Area light V3 500-450-400W 100-277V 57K bronze clear type3M motion base twist lock photo
Area light V3 500-450-400W 100-277V 57K bronze clear type3M motion base twist lock photo
Available in stock (34)
Couldn't load pickup availability
Description
Description
Technical specifications
Nomenclature
| Series | Dimensions | Lens | Body Colour | Voltage | CCT | Max Power | Options 1 | Options 2 | VER. |
|---|---|---|---|---|---|---|---|---|---|
| AL | 3M | C | R | D | 6 | 500 | M | P | SS |
| Area light | type3M | clear | bronze | 100-277V | 5700K | 500-450-400W | motion base | twist lock photo | SS |
| Series | Dimensions | Lens | Body Colour | Voltage |
|---|---|---|---|---|
| AL | 3M | C | R | D |
| Area light | type3M | clear | bronze | 100-277V |
| CCT | Max Power | Options 1 | Options 2 | VER. |
|---|---|---|---|---|
| 6 | 500 | M | P | SS |
| 5700K | 500-450-400W | motion base | twist lock photo | SS |

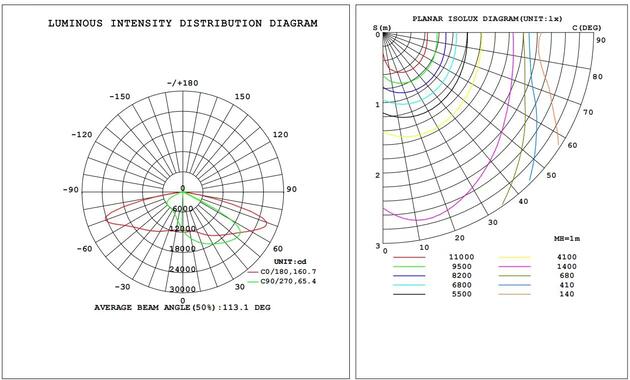

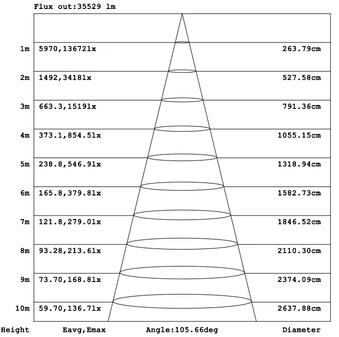

Photometric Specifications
| CCT | 5700K |
|---|---|
| Angle | Type 3-M |
| C.R.I. | 82.0 |
| Efficiency | 139.72 |
| Lumens (DLC) | 68602.0 |
| Lumen maintenance L70 | 50,000 hrs |
| Dimmable | Yes |
| Photocell | Yes |
| Sensor | Yes |
| Flicker | Flicker-Free |
| Application tags | Outdoor |
| Application tags (2) | Commercial, Industriel |
| Application tags (4) | Outdoor |
| Application tags (5) | CommercialIndustriel |
Electrical Specifications
| Voltage | 100-277V |
|---|---|
| Max Power | 491.3 |
| Max real power | 491.3 |
| Power factor | 94.0 |
| T.H.D | 9.5 |
| Frequency | 50/60Hz |
| Surge protection w/ ground | 4KV |
| Surge protection w/o ground | 6KV |
Certifications & Other
| Electrical | cUL |
|---|---|
| Waterproof | IP65 |
| Resistance | IK08 |
| FCC | false |
| DLC applicable | No |
| DLC ID | S-G0N643 |
| Efficiency | DLC Premium |
Mechanical Specifications
| Housing material | Die casting Aluminium |
|---|---|
| Housing finish | Bronze |
| Lens material | Polycarbonate |
| Installation | Wall & Poll Mount |
| Cable length | 100.0 |
| EPA tilt | 2.80Ft² |
| Operating temperature | -40°C ~ 45°C |
| Storage temperature | -40°C ~ 70°C |
| LED type | SMD2835 |
| LED qty | 592 |

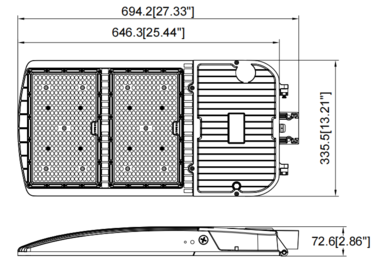

Dimensions
Packaging
| Unit box dimension | Master box dimension | Master qty | Weight | Pallet qty |
|---|---|---|---|---|
| 82.0 cm X 39.0 cm X 15.0 cm32.28" X 15.35" X 5.91" | 0.0 cm X 0.0 cm X 0.0 cm0.0" X 0.0" X 0.0" | 0 | 10.0 kg22.05 lbs | 40 |
