Area light V3 300-240-200W 120-347V 30-40-50K brown clear type3M motion base twist lock photo
Area light V3 300-240-200W 120-347V 30-40-50K brown clear type3M motion base twist lock photo
Out of stock
Couldn't load pickup availability
Description
Description
Technical specifications
Nomenclature
| Series | Dimensions | Lens | Body Colour | Voltage | CCT | Max Power | Options 1 | Options 2 | VER. |
|---|---|---|---|---|---|---|---|---|---|
| AL | 3M | C | R | F | C | 300 | M | P | SS |
| Area light | type 3M | clear | brown | 120-347V | 3000-4000-5000K | 300-240-200W | motion base | twist lock photo | SS |
| Series | Dimensions | Lens | Body Colour | Voltage |
|---|---|---|---|---|
| AL | 3M | C | R | F |
| Area light | type 3M | clear | brown | 120-347V |
| CCT | Max Power | Options 1 | Options 2 | VER. |
|---|---|---|---|---|
| C | 300 | M | P | SS |
| 3000-4000-5000K | 300-240-200W | motion base | twist lock photo | SS |

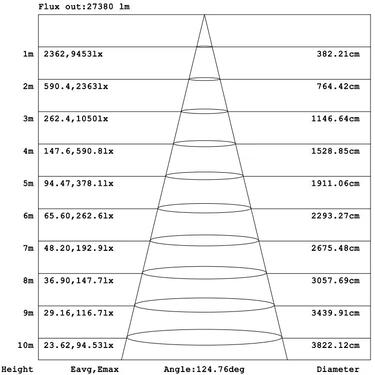

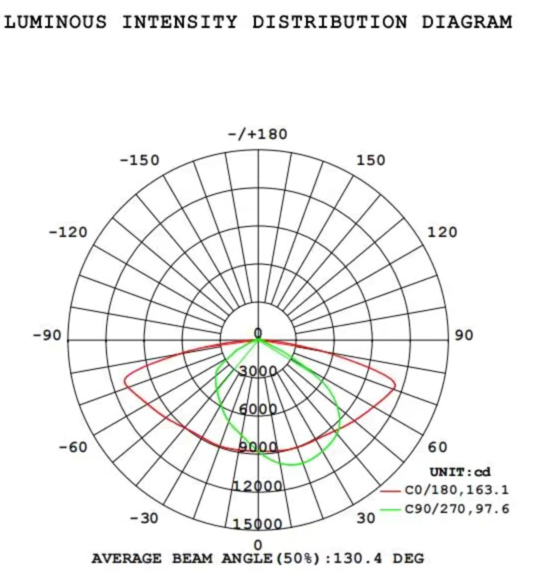

Photometric Specifications
| CCT | 3000/4000/5000K |
|---|---|
| Angle | T3 |
| C.R.I. | 81.0 |
| Efficiency | 139.83 |
| Lumens (DLC) | 41948.0 |
| Lumen maintenance L70 | 50,000 hrs |
| Dimmable | Yes |
| Photocell | Yes |
| Sensor | Yes |
| Flicker | Flicker-Free |
| Application tags (4) | Outdoor |
| Application tags (5) | CommercialIndustrial |
Electrical Specifications
| Voltage | 120-347V |
|---|---|
| Max Power | 300W |
| Max real power | 300W |
| Power factor | 96.0 |
| T.H.D | 14.2 |
| Frequency | 50/60Hz |
| Surge protection w/ ground | 4KV |
| Surge protection w/o ground | 6KV |
Certifications & Other
| Electrical | ass |
|---|---|
| Waterproof | IP66 |
| Resistance | IK08 |
| FCC | false |
| DLC applicable | No |
| DLC ID | S-94WJM9 |
| Efficiency | Premium DLC |
Mechanical Specifications
| Housing material | Die casting aluminum |
|---|---|
| Housing finish | Bronze |
| Lens material | Polycarbonate |
| Installation | Wall & Poll Mount |
| Cable length | 100.0 |
| EPA tilt | 1.79ft² |
| Operating temperature | -40°C ~ 45°C |
| Storage temperature | -40°C ~ 70°C |
| LED type | SMD 2835 |
| LED qty | 608 |

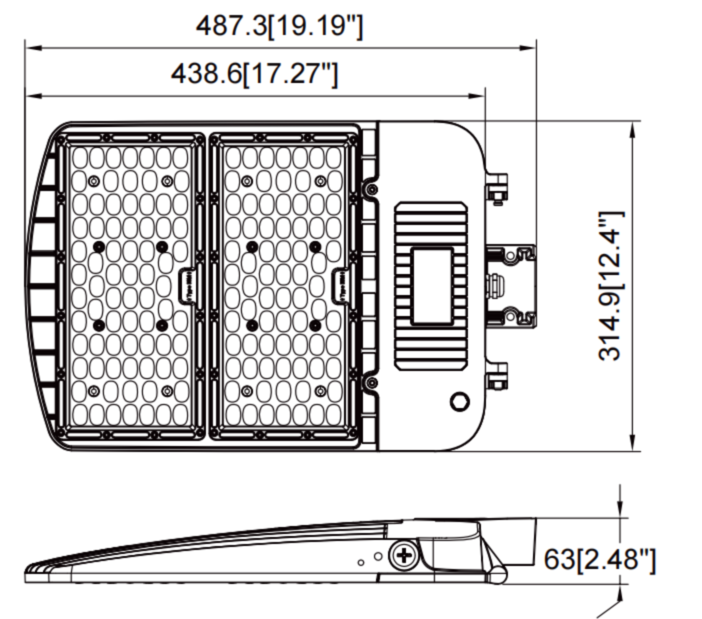

Dimensions
Packaging
| Unit box dimension | Master box dimension | Master qty | Weight | Pallet qty |
|---|---|---|---|---|
| 70.4 cm X 36.5 cm X 14.5 cm27.72" X 14.37" X 5.71" | 0.0 cm X 0.0 cm X 0.0 cm0.0" X 0.0" X 0.0" | 0 | 5.9 kg13.01 lbs | 40 |
