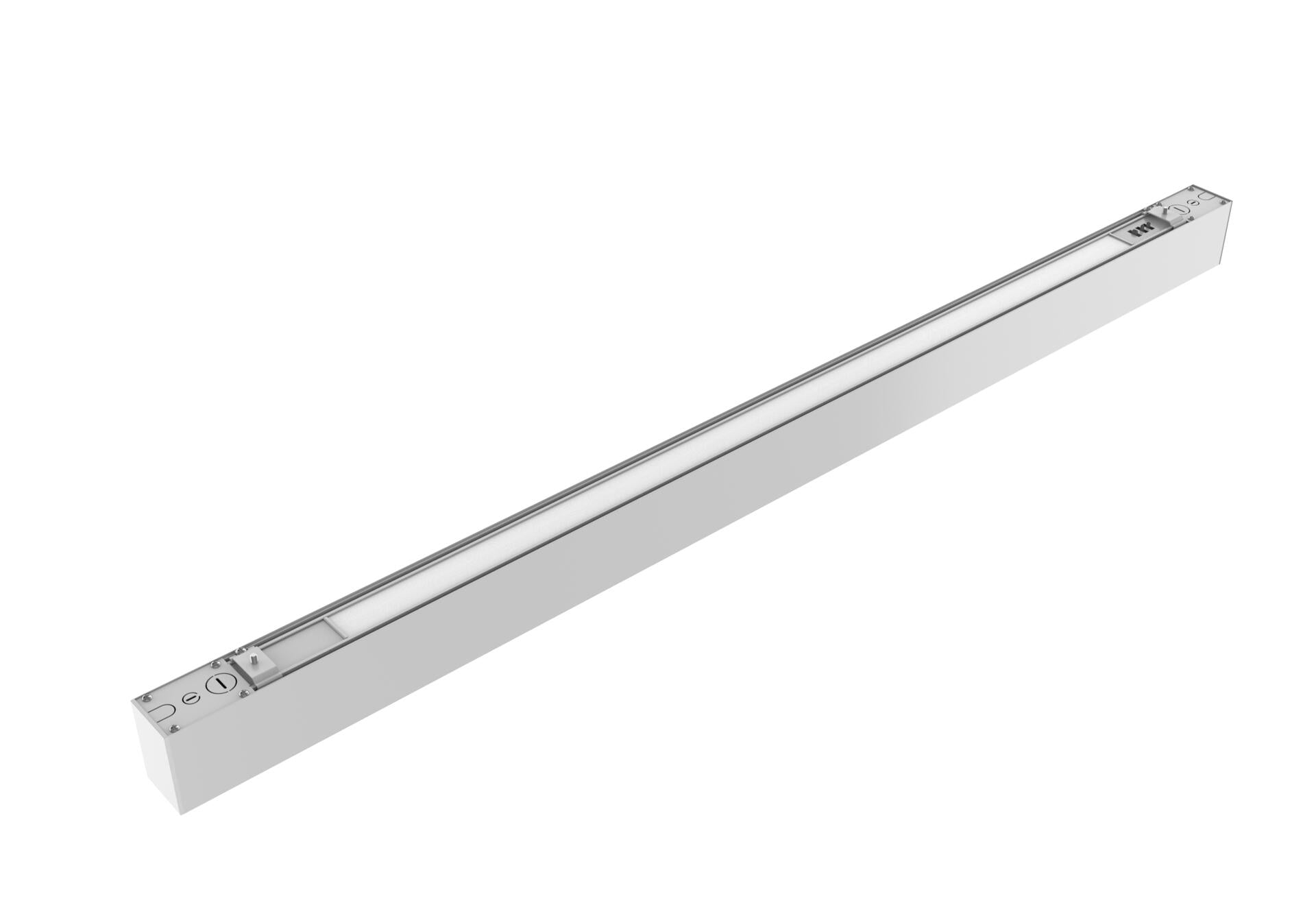

Arch Linear 4ft 50-40-35-30-25W 120-347V 27-35-40-50-50-57K white frost dim 0-10V motion ready 12VDC
Arch Linear 4ft 50-40-35-30-25W 120-347V 27-35-40-50-50-57K white frost dim 0-10V motion ready 12VDC
Out of stock
This product is oversize. Shipping cost and MOQ may be impacted. Final shipping price calculated at checkout.
Couldn't load pickup availability
Description
Description
Technical specifications
Nomenclature
| Series | Dimensions | Lens | Body Colour | Voltage | CCT | Max Power | Options 1 | Options 2 | VER. |
|---|---|---|---|---|---|---|---|---|---|
| LA | 04 | F | W | F | C | 050 | D | M | SS |
| Arch Linear | 4ft | frost | white | 120-347V | 2700-3500-4000-5000-5000-5700K | 50-40-35-30-25W | dim 0-10V | motion ready 12VDC | SS |
| Series | Dimensions | Lens | Body Colour | Voltage |
|---|---|---|---|---|
| LA | 04 | F | W | F |
| Arch Linear | 4ft | frost | white | 120-347V |
| CCT | Max Power | Options 1 | Options 2 | VER. |
|---|---|---|---|---|
| C | 050 | D | M | SS |
| 2700-3500-4000-5000-5000-5700K | 50-40-35-30-25W | dim 0-10V | motion ready 12VDC | SS |
Photometric Specifications
| CCT | 27-35-40-50-50-57K |
|---|---|
| Angle | 120° |
| C.R.I. | 80.0 |
| Efficiency | 140.0 |
| Lumens (DLC) | 7000.0 |
| Lumen maintenance L70 | 50,000 hrs |
| Dimmable | Yes |
| Photocell | Yes |
| Sensor | Yes |
| Flicker | Flicker-Free |
| Application tags (4) | Indoor |
Electrical Specifications
| Voltage | 120-347V |
|---|---|
| Max Power | 50.0 |
| Max real power | 50.0 |
| Power factor | 90.0 |
| T.H.D | 20.0 |
| Frequency | 50/60Hz |
| Surge protection w/ ground | 1KV |
| Surge protection w/o ground | 2KV |
Certifications & Other
| Electrical | cUL |
|---|---|
| Waterproof | IP20 |
| Resistance | N/A |
| FCC | false |
| DLC applicable | No |
| Efficiency | DLC Premium |
Mechanical Specifications
| Housing material | Aluminium, Powder Coated |
|---|---|
| Housing finish | White |
| Lens material | Polycarbonate |
| Installation | Surface Mount, Suspended |
| Cable length | 180.0 |
| Operating temperature | -40°C ~ 45°C |
| Storage temperature | -40°C ~ 70°C |
| LED type | SMD 2835 |
| LED qty | 390 |
Dimensions

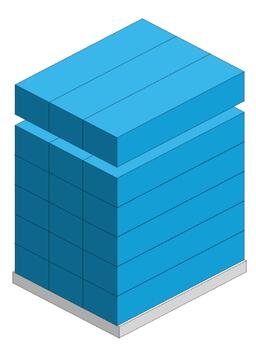

Packaging
| Unit box dimension | Master box dimension | Master qty | Weight | Pallet qty |
|---|---|---|---|---|
| 125.0 cm X 5.4 cm X 9.3 cm49.21" X 2.13" X 3.66" | 129.0 cm X 26.8 cm X 32.0 cm50.79" X 10.55" X 12.6" | 12 | 1.48 kg3.26 lbs | 18 |
