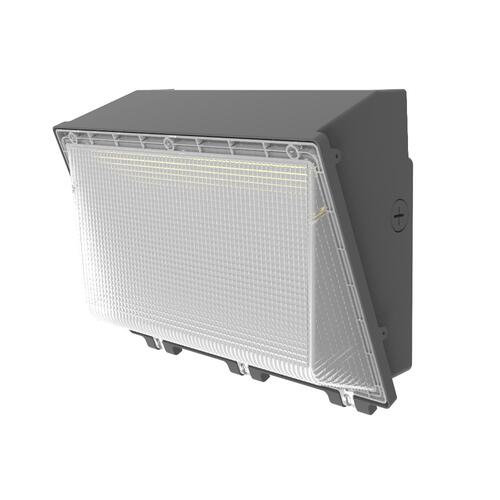

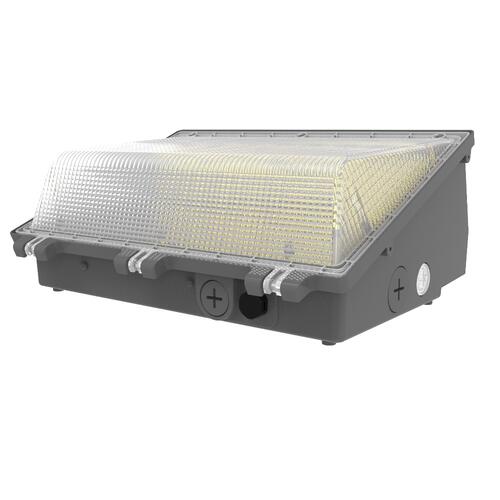

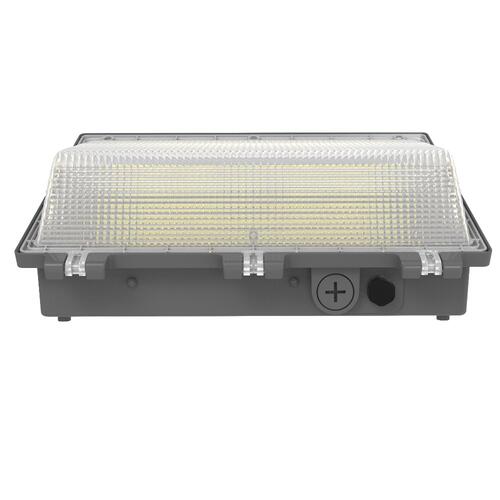

(ventes finale) Wall pack V2 60-40-30W 120-347V 30-40-50K bronze clear 120 deg. int. photo.
(ventes finale) Wall pack V2 60-40-30W 120-347V 30-40-50K bronze clear 120 deg. int. photo.
Available in stock (44)
Couldn't load pickup availability
Description
Description
Technical specifications
Nomenclature
| Series | Dimensions | Lens | Body Colour | Voltage | CCT | Max Power | Options 1 | Options 2 | VER. |
|---|---|---|---|---|---|---|---|---|---|
| WP | 00 | C | R | F | C | 060 | 0 | P | V2 |
| Wall pack | 120 deg. | clear | bronze | 120-347V | 3000-4000-5000K | 60-40-30W | N/A | int. photo. | Eco |
| Series | Dimensions | Lens | Body Colour | Voltage |
|---|---|---|---|---|
| WP | 00 | C | R | F |
| Wall pack | 120 deg. | clear | bronze | 120-347V |
| CCT | Max Power | Options 1 | Options 2 | VER. |
|---|---|---|---|---|
| C | 060 | 0 | P | V2 |
| 3000-4000-5000K | 60-40-30W | N/A | int. photo. | Eco |

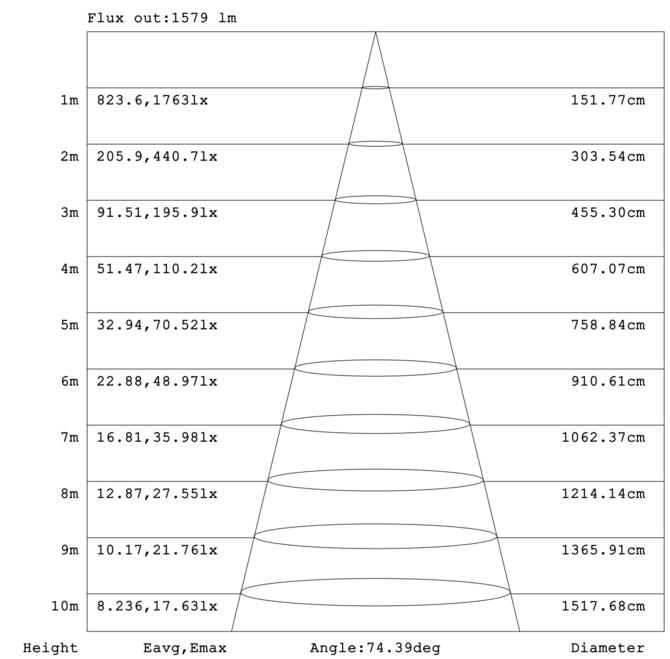

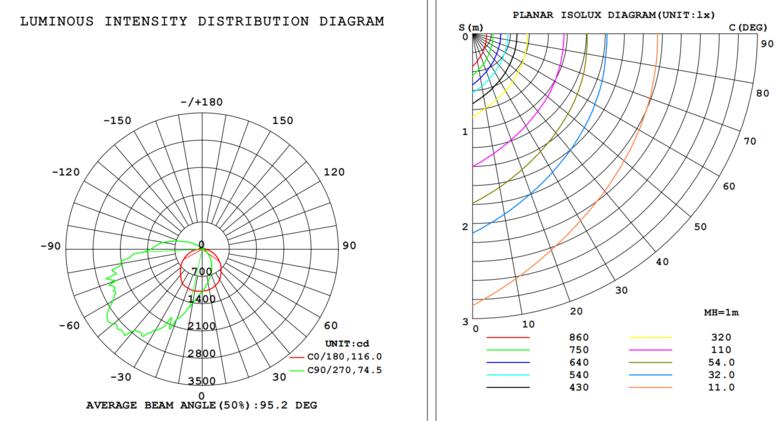

Photometric Specifications
| CCT | 3CCT (3000-4000-5000K) |
|---|---|
| Angle | 70°*115°(±5°） |
| C.R.I. | 81.0 |
| Efficiency | 130.0 |
| Lumens (DLC) | 7800.0 |
| Lumen maintenance L70 | 50,000 hrs |
| Dimmable | Yes |
| Photocell | Yes |
| Sensor | Yes |
| Flicker | Flicker-Free |
| Application tags (4) | Outdoor |
| Application tags (5) | Commercial |
Electrical Specifications
| Voltage | 120-347V |
|---|---|
| Max Power | 60.0 |
| Max real power | 60.0 |
| Power factor | 94.0 |
| T.H.D | 16.6 |
| Frequency | 50/60Hz |
| Surge protection w/ ground | 6KV |
| Surge protection w/o ground | 6KV |
Certifications & Other
| Electrical | cUL |
|---|---|
| Waterproof | IP65 |
| Resistance | IK06 |
| FCC | false |
| DLC applicable | No |
| DLC ID | S-DK01KR |
| Efficiency | DLC Premium |
Mechanical Specifications
| Housing material | Die casting Aluminium |
|---|---|
| Housing finish | Bronze |
| Lens material | Polycarbonate |
| Installation | Wall Mount |
| Cable length | N/A |
| Operating temperature | -40°C ~ 45°C |
| Storage temperature | -40°C ~ 70°C |
| LED type | SMD 2835 |
| LED qty | 250 |

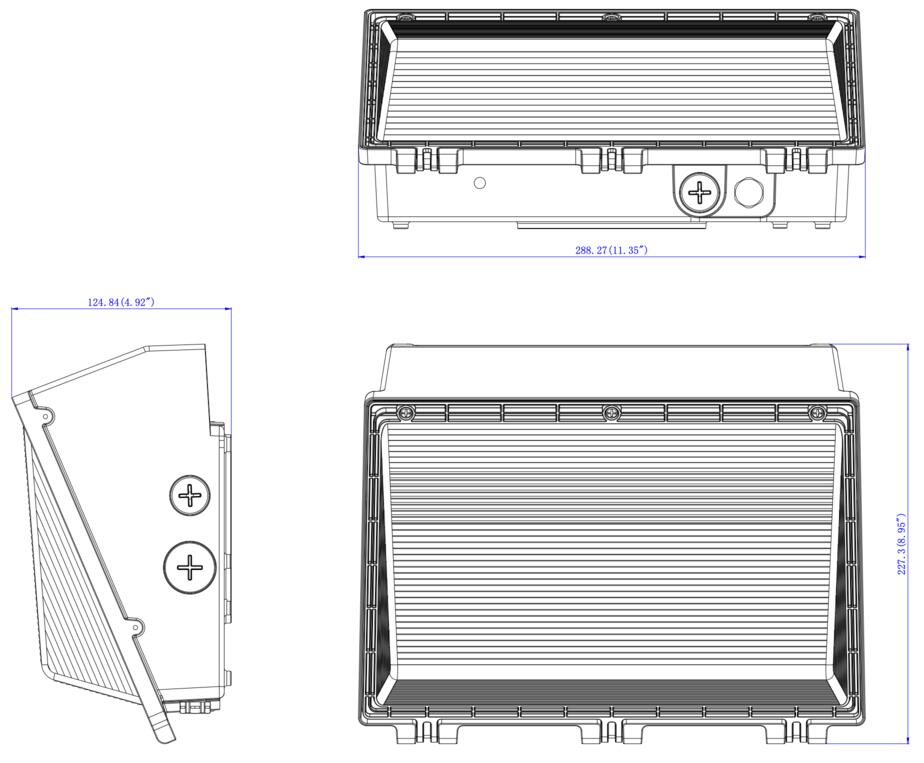

Dimensions

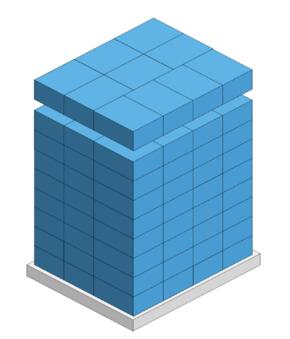

Packaging
| Unit box dimension | Master box dimension | Master qty | Weight | Pallet qty |
|---|---|---|---|---|
| 37.5 cm X 28.0 cm X 17.5 cm14.76" X 11.02" X 6.89" | 50.5 cm X 32.1 cm X 32.0 cm19.88" X 12.64" X 12.6" | 4 | 2.3 kg5.07 lbs | 90 |
