On a job site with dozens or hundreds of panels, saving a few minutes per fixture adds up to a significant difference. That’s exactly the challenge Speclite’s new generation of LED panels addresses: offering more options with less complexity while making installation easier with a fully removable driver.
The PB24FWFC0720DV2 2 × 4 model combines five wattages and five color temperatures in a single product. This allows it to be adapted to multiple spaces without increasing the number of inventory SKUs.

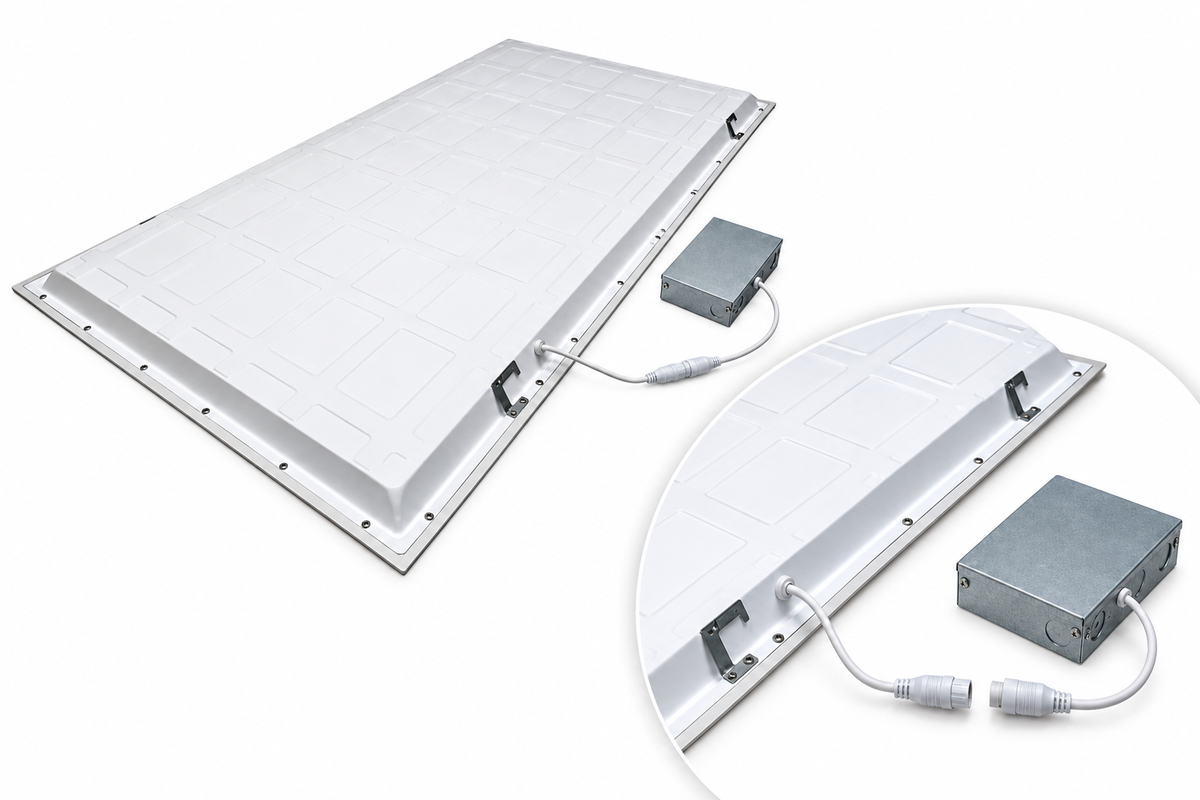

A removable driver designed for large-scale projects
With a traditional panel, electrical connections and handling the fixture often happen at the same time. The removable driver lets you separate these tasks.
Three clear installation steps
The senior electrician prepares the power supply
They secure the driver enclosure in the ceiling cavity and make the initial electrical connections in accordance with the plans and project requirements.
The junior electrician connects the connectors
Once the panel is ready for installation, the two connectors are simply joined. There’s no need to reopen the power connection that has already been completed.
The panel is placed in the ceiling
The fixture is then positioned in the ceiling grid, completing the visible installation.
One SKU, multiple configurations
5 selectable wattages
72, 60, 50, 40 or 30 W. The electrician can adjust the wattage to meet the space’s actual needs at the time of installation.
5 color temperatures
3,000, 4,000, 5,000, 5,700 or 6,500 K, allowing the same product to be standardized across different environments.
0-10 V dimming
Light output can be dimmed to 10%, making it easier to integrate with controls and energy-saving strategies.
Stable light
Flicker-free technology, a frosted polycarbonate lens and wide distribution provide uniform lighting in commercial spaces.
Technical specifications for the 2 × 4 panel
| Specification | PB24FWFC0720DV2 |
|---|---|
| Wattages | 72 / 60 / 50 / 40 / 30 W |
| Color temperatures | 3,000 / 4,000 / 5,000 / 5,700 / 6,500 K |
| Maximum luminous output | 9,000 lm |
| Efficacy | 125 lm/W |
| Input voltage | 120-347 V · 50/60 Hz |
| Dimming | 0-10 V, down to 10% |
| Light quality | CRI 80 · flicker-free · listed 180° beam angle |
| Power factor / THD | 90% / 15% |
| Lumen maintenance | L70 · 50,000 hours |
| Construction | White steel housing · frosted polycarbonate lens · 6 kg weight |
| Operating temperature | -25 to 50°C |
| Installation | Recessed, surface-mounted or suspended with appropriate accessories |
| Protection | IP40 · 2 kV surge protection with grounding and 1 kV without grounding |
| Certifications | cETL · DLC Premium · DLC ID S-1P2NR5 |
| LED module | 168 SMD 2835 LEDs · 25-52 VDC · 1,500 mA |
Three sizes to standardize the series
The new generation is available in 1 × 4, 2 × 2 and 2 × 4 sizes. This family lets you maintain a consistent look across different spaces while choosing the size that suits the ceiling.
Where can you use this new series?
A more flexible panel, from quote to installation
The removable driver doesn’t just change the product—it helps you organize the job site more effectively. Add five wattages, five CCTs and three sizes, and you have a series designed to simplify selection, inventory and execution.
The technical specifications shown apply to the PB24FWFC0720DV2 2 × 4 model and are taken from the Speclite specification sheet provided. Check the specification sheet for the selected size before preparing your final quote.
